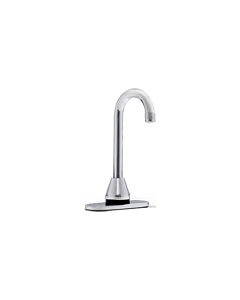

AutoFaucet® with Surround Sensor™ Technology

AutoFaucet sets the standard for reliability and user-friendly performance in automated faucet systems. Equipped with patented Surround Sensor™ Technology, AutoFaucet delivers water only when needed, which results in water savings of up to 70 percent

Encourages Healthy Hand Washing

  • Touch-Free activation eliminates cross-contamination to help reduce the spread of germs
  • Reliable activation encourages frequent use

Saves Money, Reduces Labor and provides World Class Reliability

  • Reduced water consumption lowers operating costs
  • “Dry” cam-gear technology ensures trouble-free operation to reduce maintenance
  • Patented dry cam-gear technology controls water flow. By eliminating solenoid valves, which fail, we ensure trouble-free operation
  • Requires less energy
  • Electronics are separate from water

Aesthetically Superior Design Enhances Décor

  • Contemporary, stylish fixtures are available in a wide array of spout designs and finishes to enhance the image and coordinate with any washroom décor

User-Friendly PerformanceEasy Installation
SST creates a 3” omni-directional sensing zone guaranteeing activation every time.

AutoFaucet SST Automatic Faucet Surround Sensor Technology
All components are included and installation takes less than 10 minutes.

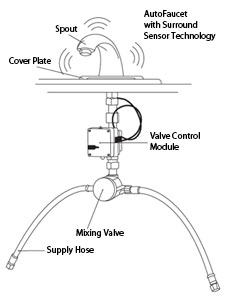

Technical Concepts TC AutoFaucet Installation Diagram

Faucets can be ordered with Flow Control Aerators that deliver 0.5 GPM, 1.0 GPM, 1.5 GPM, 2.0 GPM or 2.2 GPM.

Kit 1 includes: spout and valve control module only (no mixing valve or water supply hoses included)
Kit 2 includes: spout, valve control module and (1) main supply hose (1/2" pipe x 3/8" comp. x 12" length, mixing valve not included)
Kit 3 includes: spout, valve control module, mixing valve and hot/cold supply hoses (3/8" comp x 3/8" comp. x 12" length)
Kit 4 includes: spout, valve control module, thermostatic mixing valve and hot/cold supply hoses (3/8” comp x 3/8” comp. x 12” length)
Kit 5 includes: spout, valve control module, mixing valve and hot/cold supply hoses (3/8" comp x 1/2" comp. x 12" length)
Kit 6 includes: 0.5 GPM spout, valve control module, mixing valve and hot/cold supply hoses (3/8" comp x 3/8" comp. x 12" length)

AutoFaucet PartsAutoFaucet SST 3 Year Warranty - ADA Compliant
